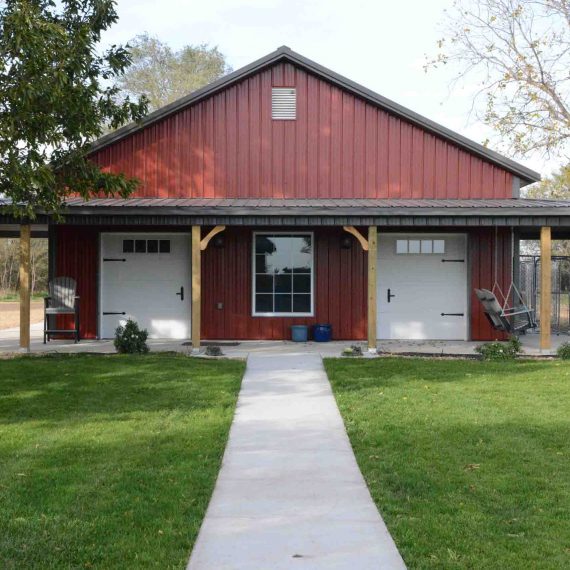

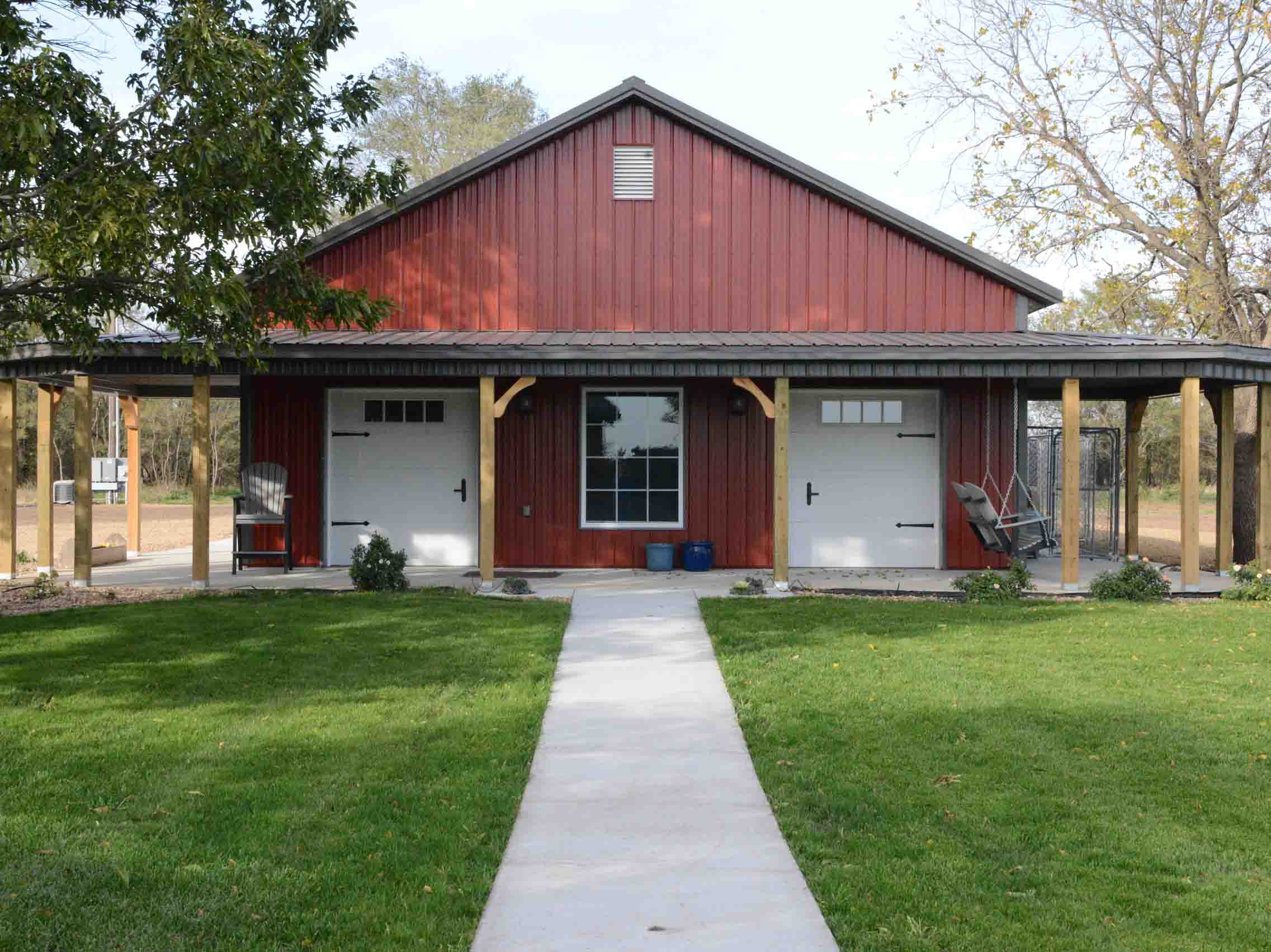

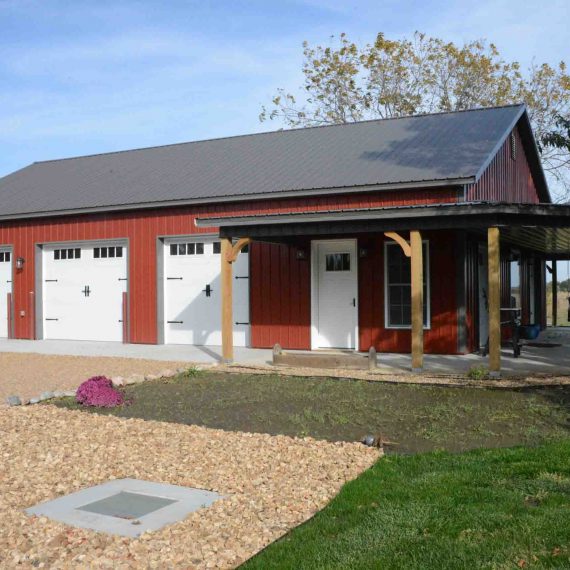

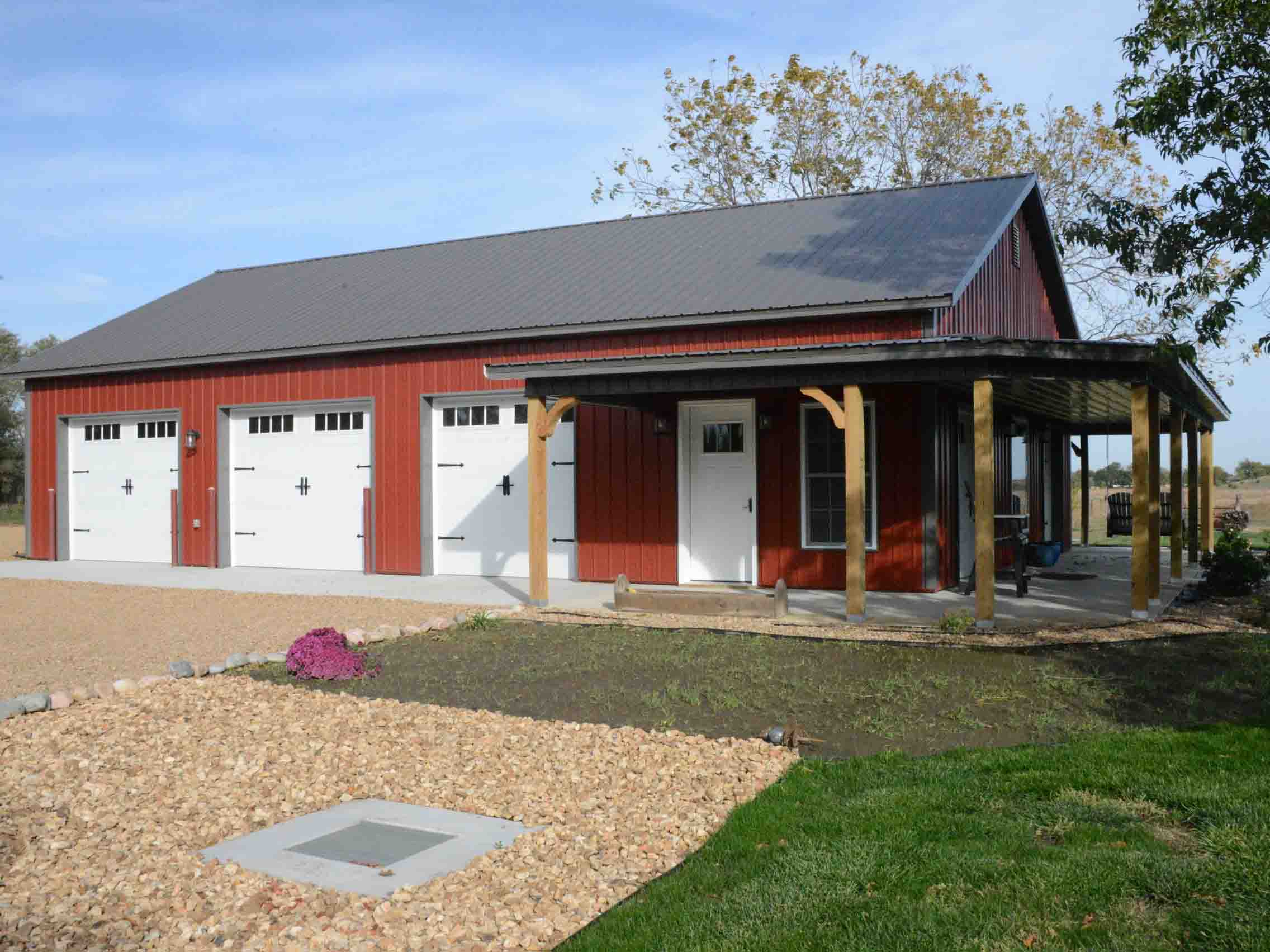

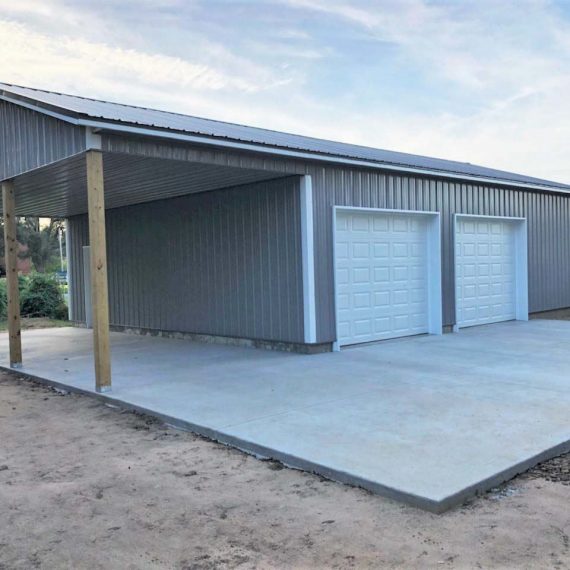

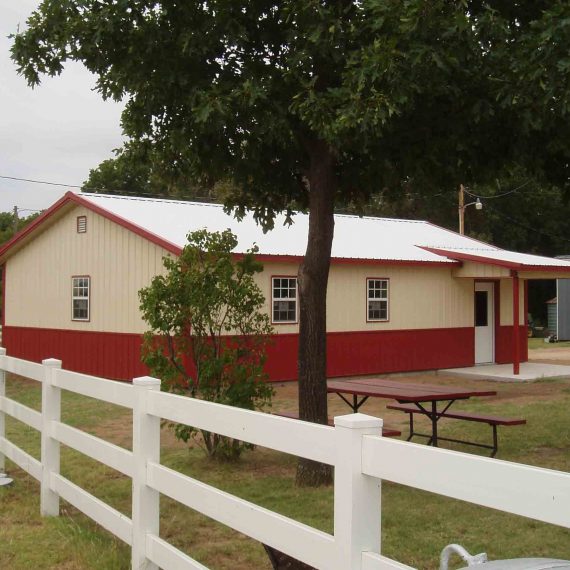

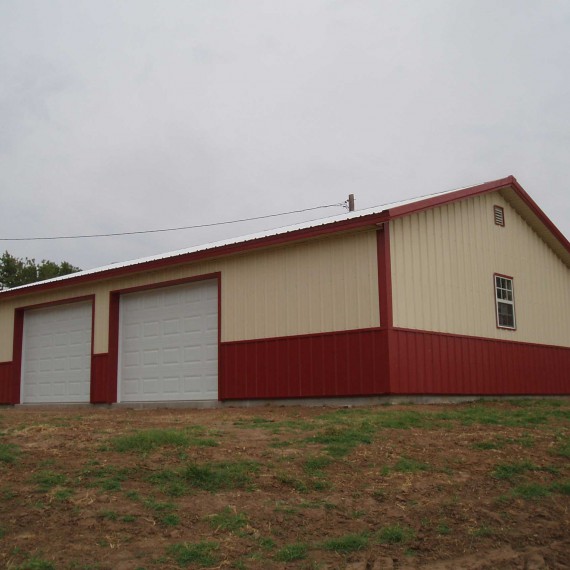

30’ x 52’ x 10’ Steel-Sided Garage

(with optional side porch and roof overhangs)

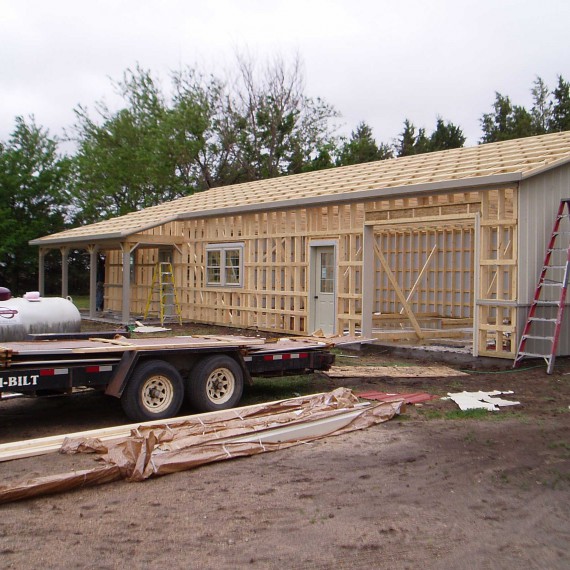

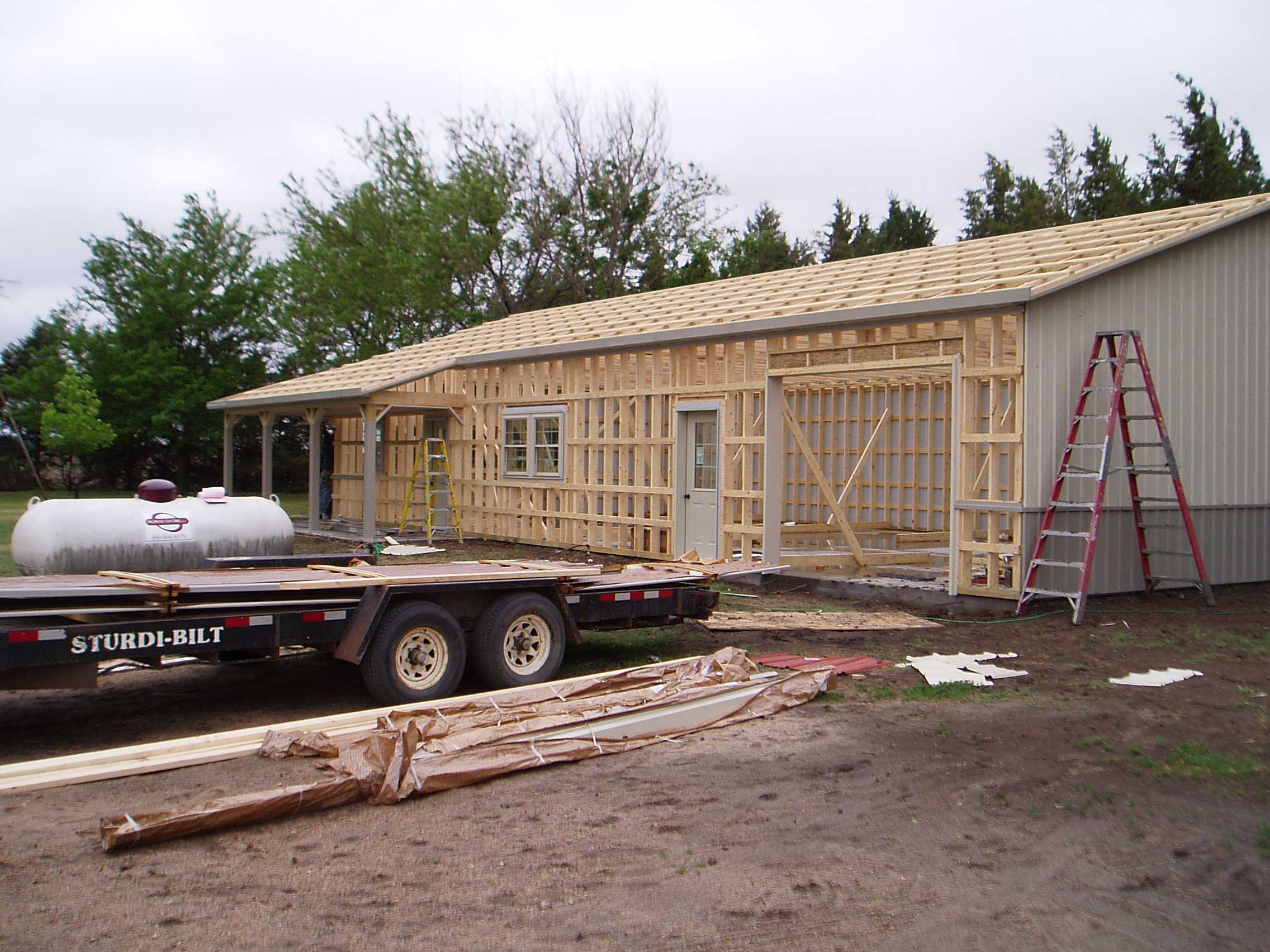

This building epitomizes both the strength and versatility of Sturdi-Bilt buildings.  Utilizing 2×6 wall studs on 24-inch centers, engineered roof trusses on 24-inch centers, and 2×4 girts and purlins, this building features more structural wood and strength than many buildings on the market today.  This stud-frame building is easily insulated, wired, and lined with your choice of interior wall covering, making it very versatile and user-friendly.  Additionally, the use of durable, vertical steel siding and roofing on the exterior helps reduce your maintenance bills.

Standard Features of STURDI-BILT Steel-Sided Garages:

  • 2×6 SPF wall studs, 24″ on center
  • 2×4 horizontal girts spaced at 24” to 30” on center
  • Choice of 8′, 9′, 10′, 11′, 12′, 14′, and 16′ high sidewalls
  • Vertical steel panels, 29 gauge, G90 galvanized, 30-year warranty, optional wainscot
  • Engineered truss rafters, 24″ on center, 4/12 pitch (other pitches optional)
  • 2×4 roof purlins spaced at 24” to 30” on center
  • 29-gauge roof steel, G90 galvanized, 30-year warranty
  • Optional 12″ roof overhangs on four sides with fascia trims and enclosed soffits
  • Steel corners, flashings, and trims in matching or complementary colors
  • Steel garage door(s) (opener, insulation and windows optional)
  • 3’x6’8″ steel-clad walk door (optional window in door)
  • Optional vinyl sliding windows are high quality, low-E coated, double-paned and American-made
  • Steel siding & roofing comes in choice of 20 colors and is secured with screws of matching colors
