Steel-Sided Gable

The Functional Storage Shed

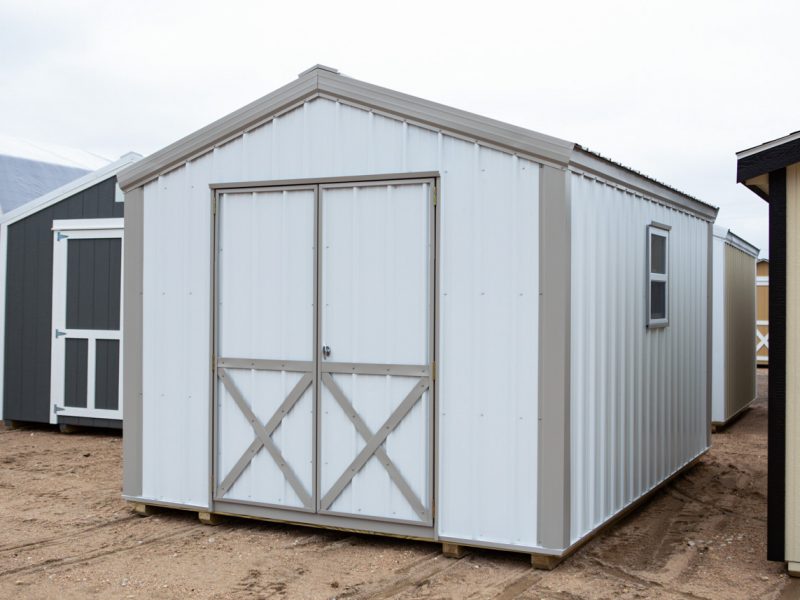

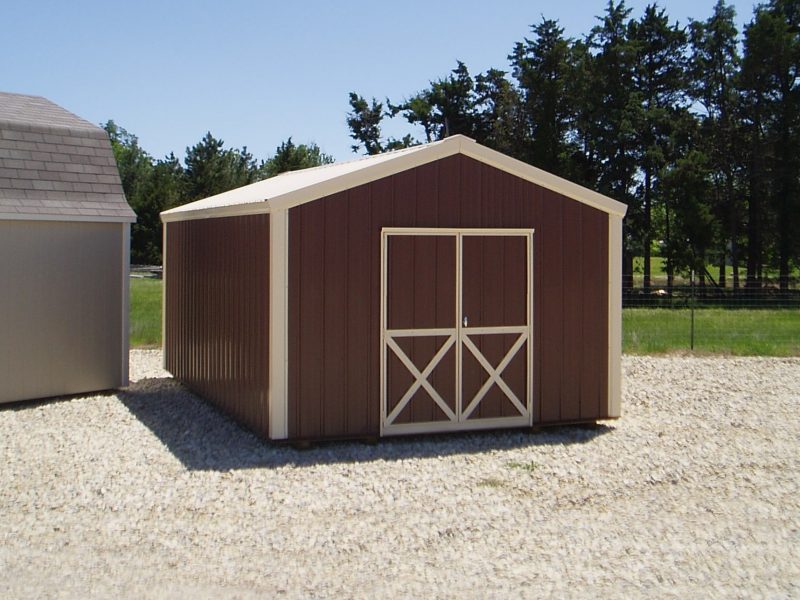

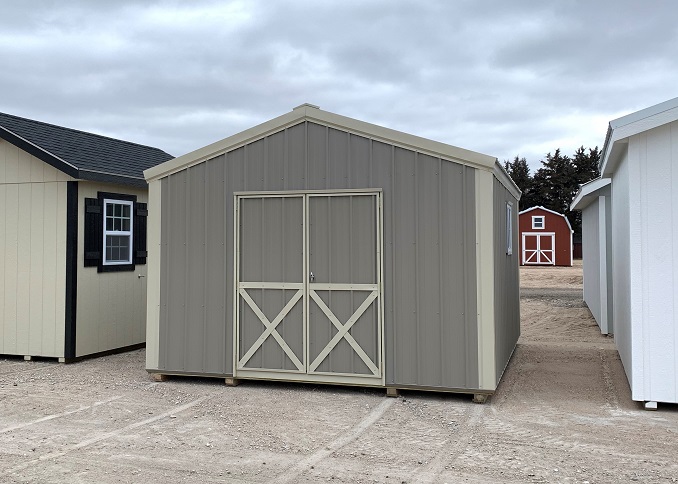

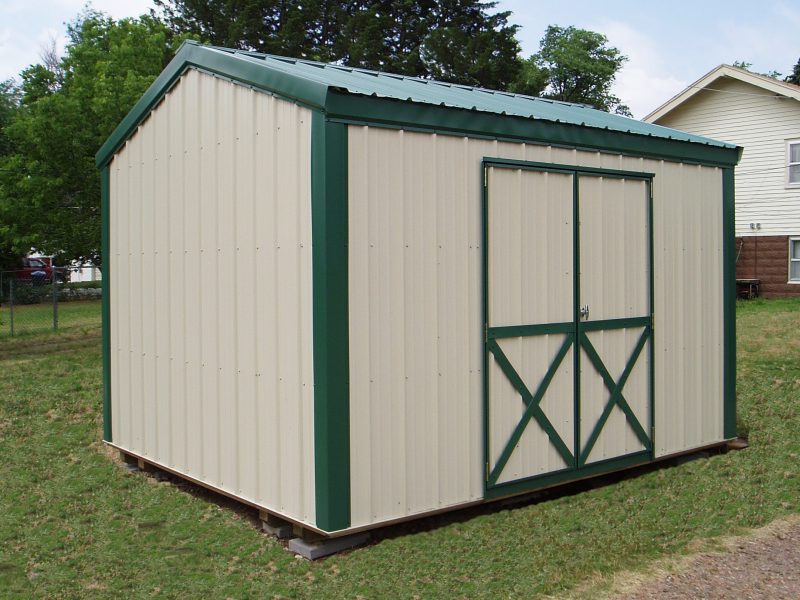

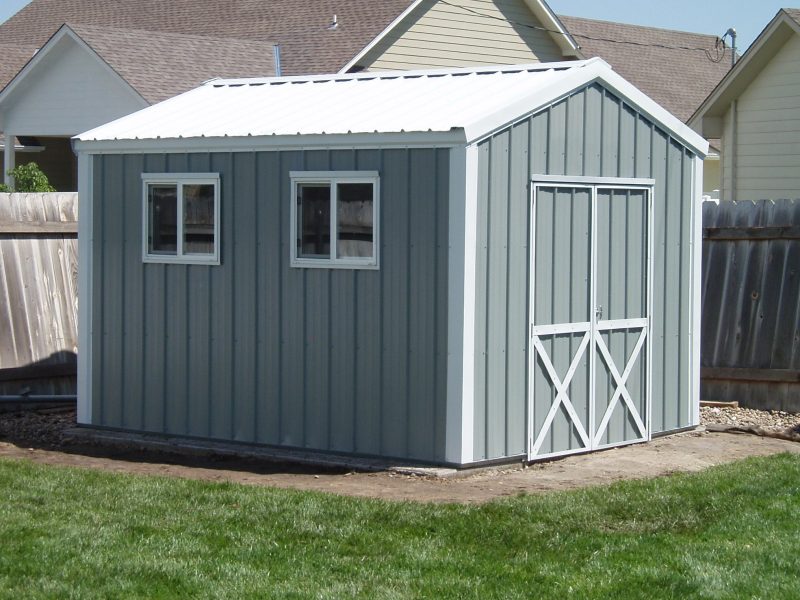

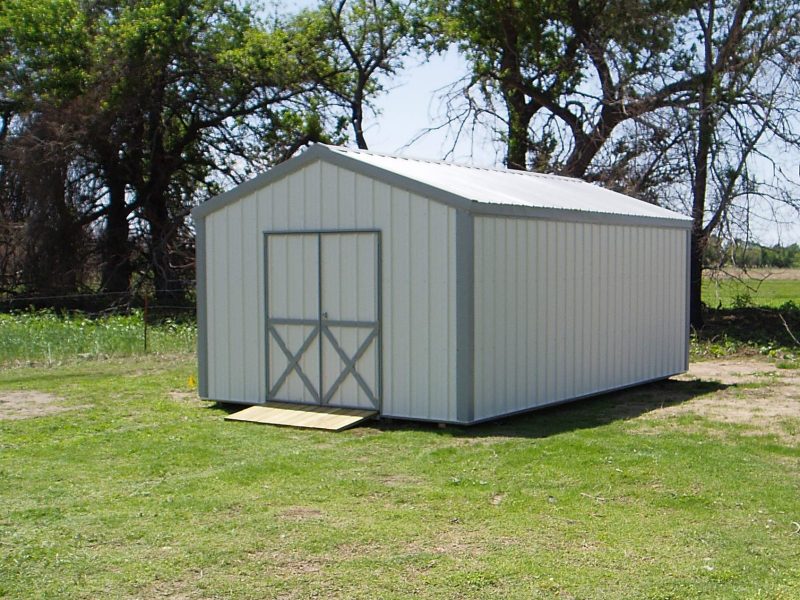

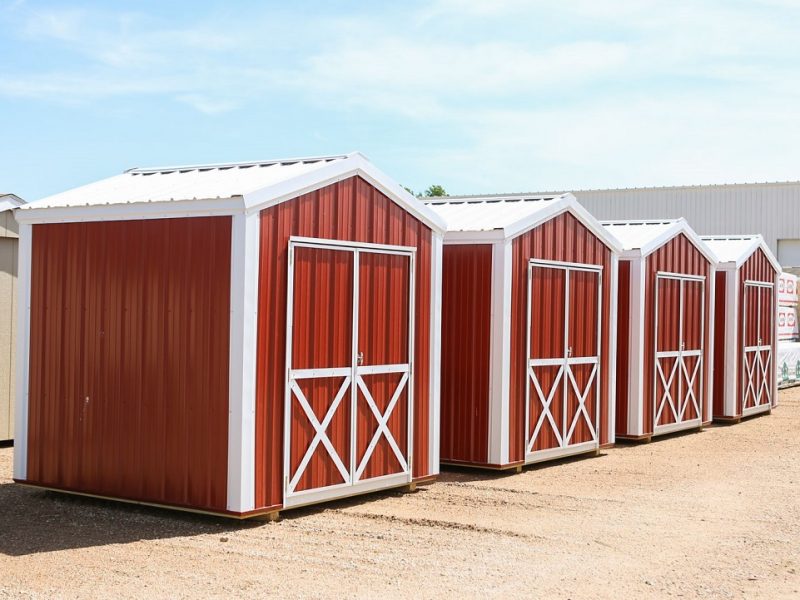

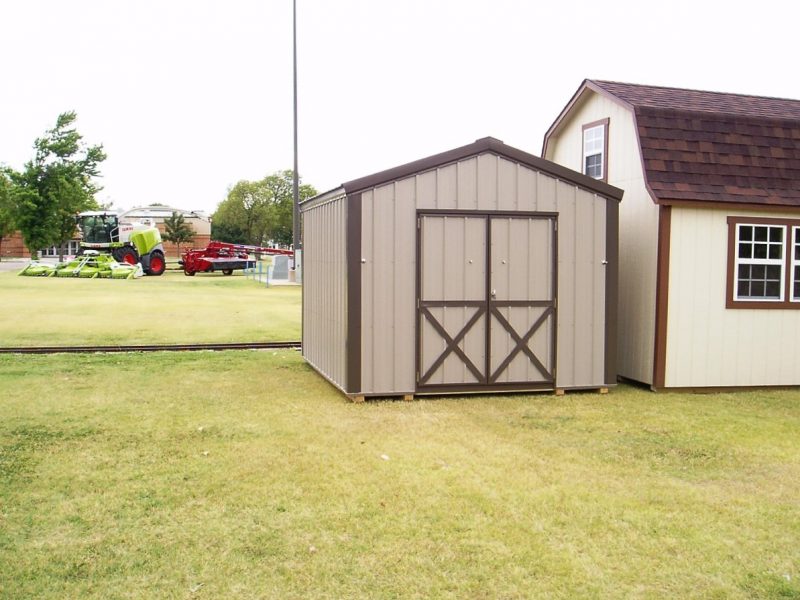

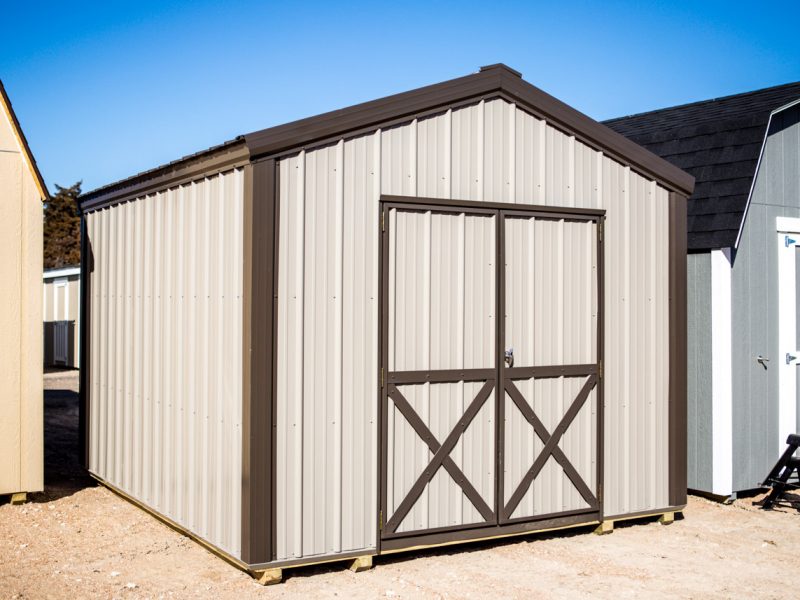

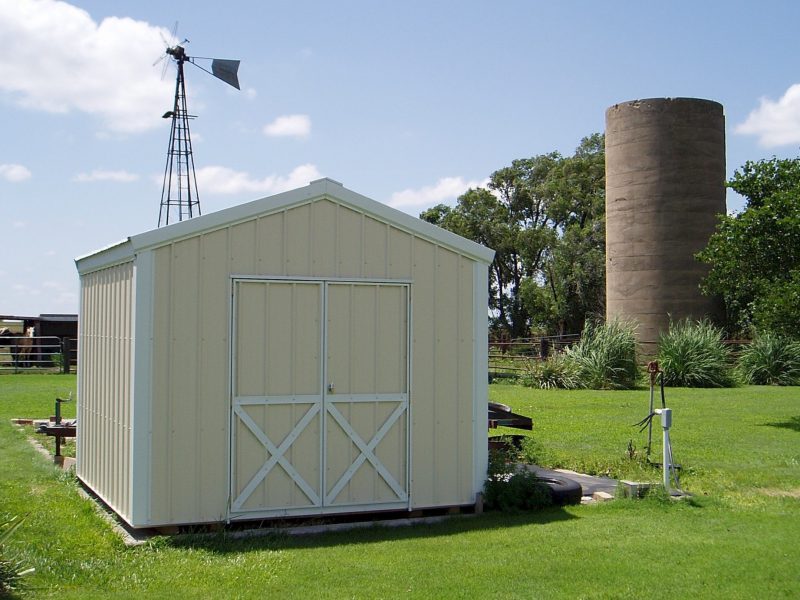

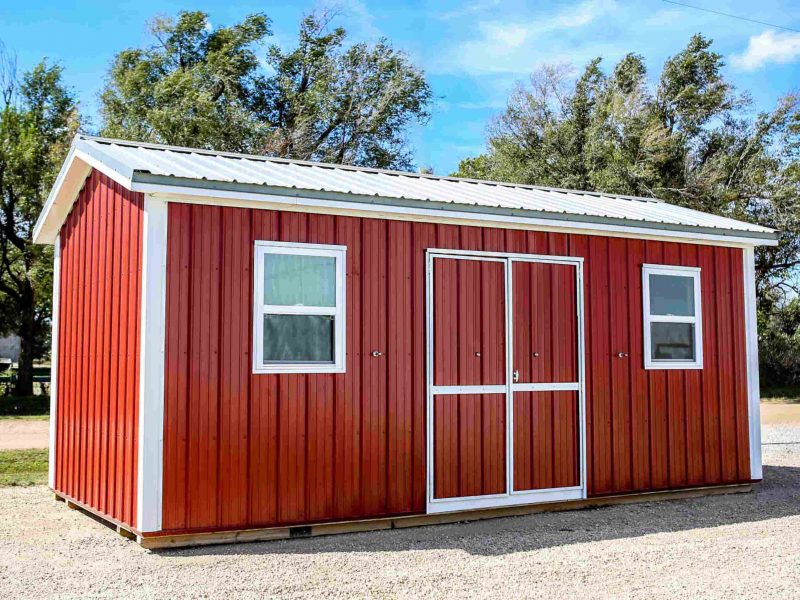

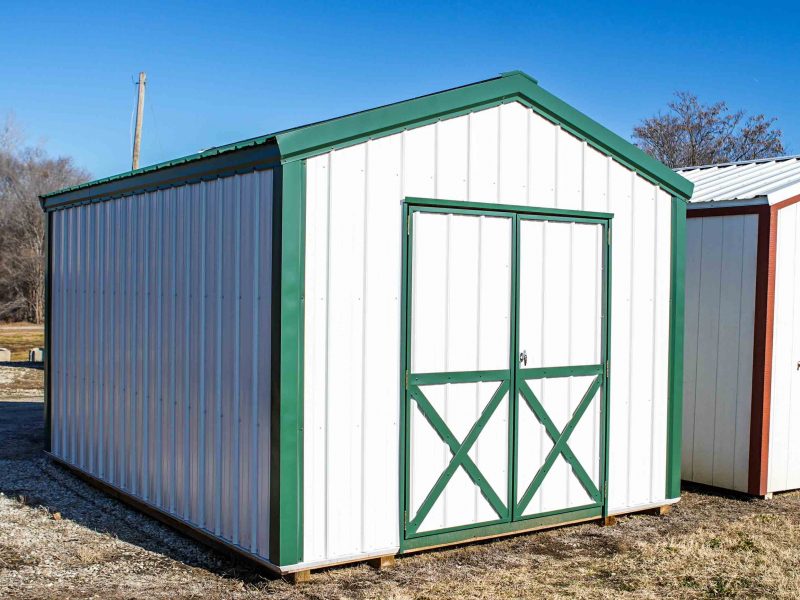

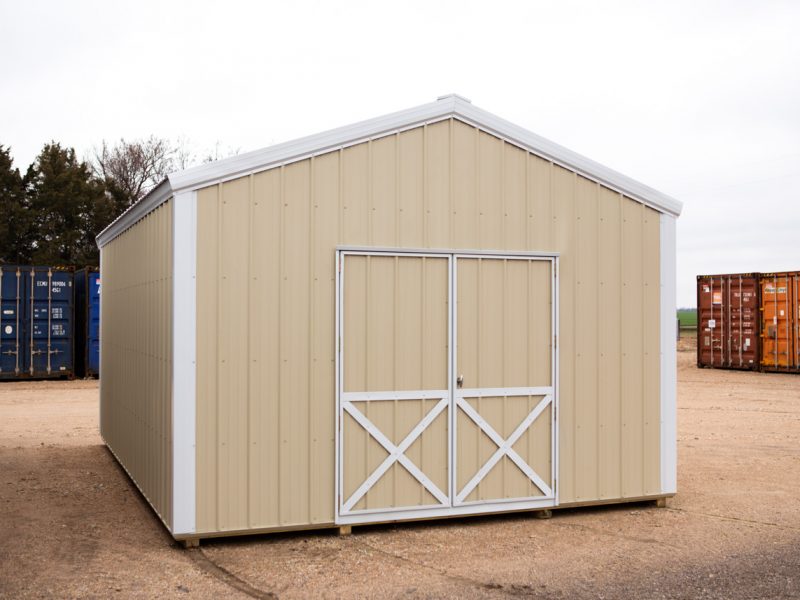

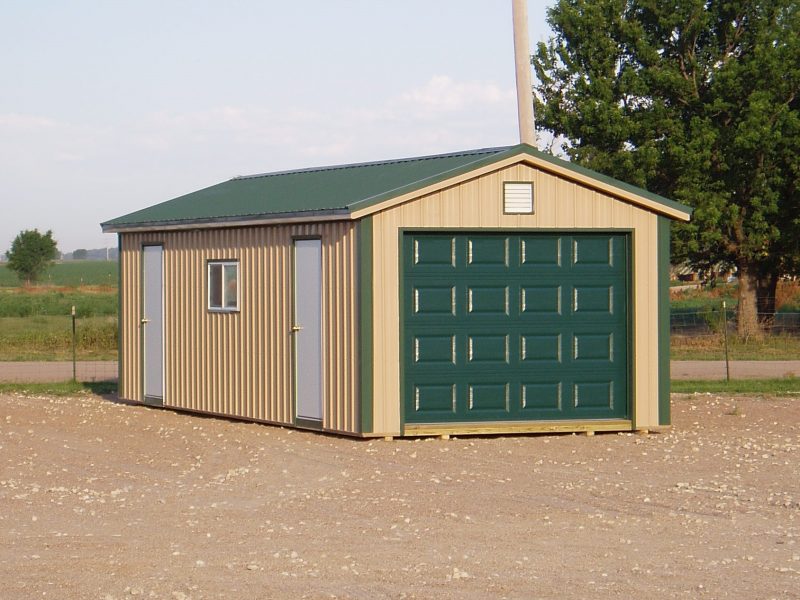

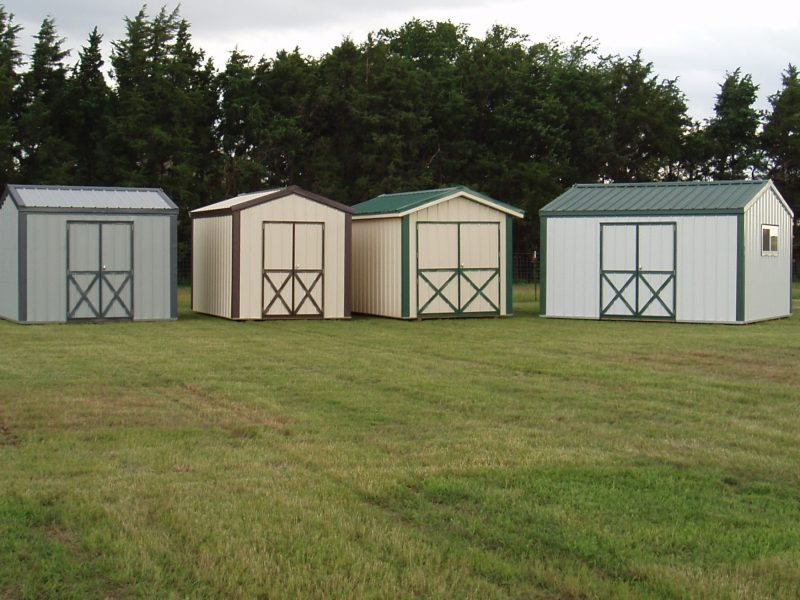

The Steel-Sided Gable:  Functional Choice in Portable Storage Sheds

The Steel-Sided Gable is sheathed in durable, 29 gauge vertical steel siding and roofing, galvanized and repainted to keep maintenance bills down.  7′ sidewalls are standard on 8′, 10′, and 12′ wide buildings with 8′ walls on 14′ buildings.  Double and single doors can be installed on any of the four sides.

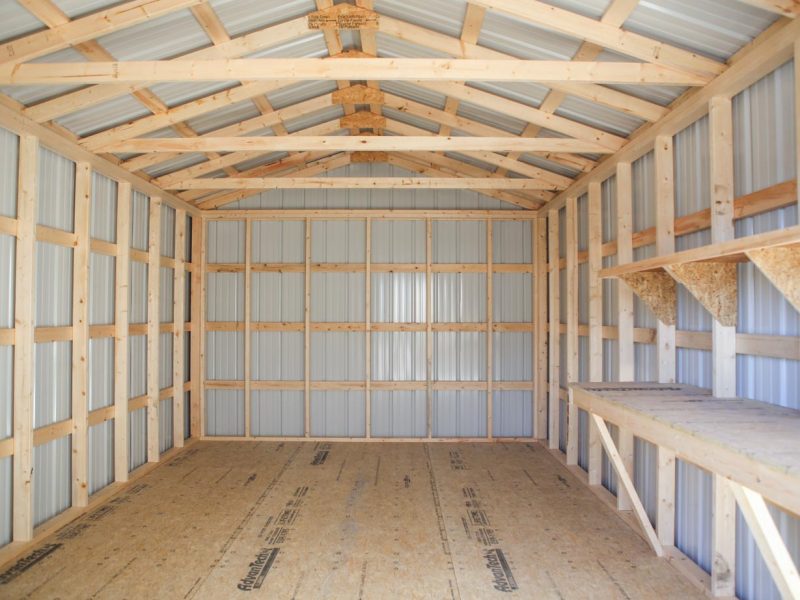

Standard features of a Steel-Sided Gable shed:

  • Treated 4×4 foundation timbers
  • 2×4 joists, 16″ on center (treated perimeter joists)
  • 3/4″ tongue and groove AdvanTech® flooring, lifetime warranty
  • Screws in flooring to minimize squeaks

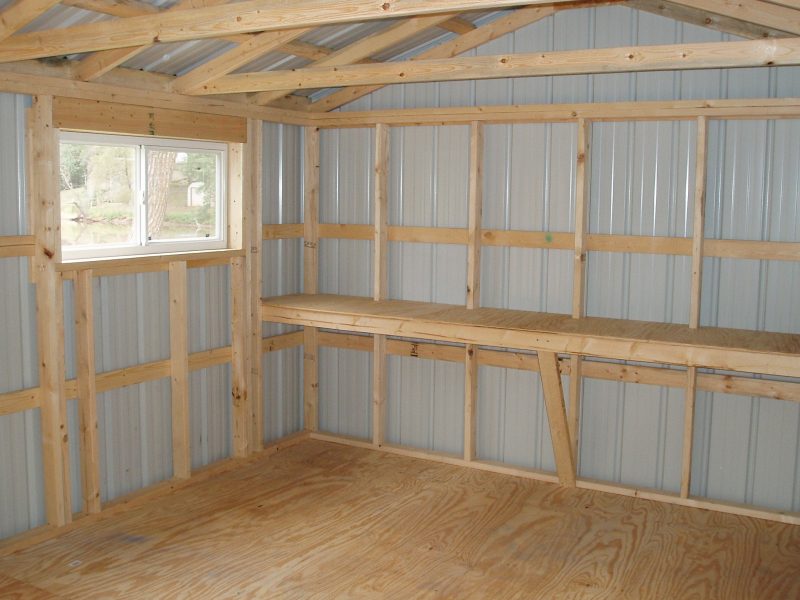

  • 2×4 wall studs, 24″ on center; 2×4 girts
  • 7′ sidewalls with 6’8″ inside; 8′ on 14′ wide
  • 29 gauge steel siding and roofing panels protect and secure your assets with low maintenance
  • choice of eighteen colors
  • 2×4 rafters, 24″ on center, 4/12 pitch; 2×6 rafters on 14′ width; 2×4 purlins
  • Optional 6″ overhangs on four sides with facia trims and enclosed soffits
  • Doors fitted with heavy 4″ tee hinges, loop-style barrel bolts, and diagonal steel braces
  • T-handled door latch; magnetic catches are optional
  • Zinc plating on door hardware (black option)

What size sheds do you build?

Our portable buildings are 8’, 10’, 12’, and 14’ wide.  Lengths range from 6’ to 40’.

Common sizes include:  8’x10’, 8’x12’, 10’x12’, 10’x14’, 10’x16’, 12’x16’, 12’x20’, 12’x24’, 14’x20’, 14’x24’, 14’x28’

How is the shed delivered?

We deliver to your site using a tilt bed trailer and Mule.  The driver will unload the shed onto dolly wheels with flotation tires and the Mule will maneuver the building into your desired spot.

How much space is required for delivery?

The amount of space is minimal.  The width requirement is approximately 2’ wider than the building width. The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage shed will require 32′ of length.  The Mule and dollies will raise the building 18″, so that must be included when calculating clearances to branches, other buildings’ eaves, etc.  We can go over a regular curb, but not a retaining wall or other large obstacle.

Do I have to be present for the delivery of my storage shed?

Yes, we recommend that you or a designated contact person be present at the time of delivery.

Can my building be constructed in my yard?

Yes, for a modest fee, we can send a crew to build your building on your site.

What do I need to do to prepare my site?

The ground surface should be level, smooth, and firm.  We can deliver onto dirt if it is not too soft.  We can also deliver onto concrete, pavement, and packed rock or gravel.  At your request, our sales staff will provide quotes for concrete or rock pad preparation.  Optionally, your building can rest on a sloped yard (with the understanding that the walls will not be perfectly plumb).

How long does it take to get my storage shed?

In-stock buildings can usually be delivered within two weeks.  Custom built orders will be built and delivered by turn.

What are your payment terms?

At time of order, we ask for a down payment by cash, check, or credit card.  The balance is due at delivery.

What if I’d like to purchase but don’t have the cash on hand?

No problem, you can buy a storage shed on our rent-to-own plan.  There is no need to rent a storage unit blocks or miles away!  Put those monthly payments toward the ownership of your own storage facility.  A security deposit is due with the contract and the first monthly payment is due at delivery.

Standard Steel Colors

Steel Colors

Dimensions of the Steel-Sided Gable Shed

8’ WIDE 10’ WIDE 12’ WIDE 14’ WIDE
Door Width: 45″ Door Width: 60″ Door Width: 60″ Door Width: 60″
Sidewall Height: 7′ Sidewall Height: 7′ Sidewall Height: 7′ Sidewall Height: 8′
Overall Height: 9’1″ Overall Height: 9’5″ Overall Height: 9’9″ Overall Height: 11’3″

Location and Spacing of Steel-Sided Gable Foundation Timbers

A. WHEN ASSEMBLED AT STURDI-BILT, THEN DELIVERED
Building width Number of timbers Center of outside timber from edge of building Distance between timbers, O.C.
8′ 2 14″ 68″
10′ 4 5″ 21″, 68″, 21″
12′ 4 5″ 33″, 68″, 33″
14′ 4 5″ 45″, 68″, 45″
B. WHEN ASSEMBLED ON CUSTOMER’S SITE
8′ 2 14″ 68″
10′ 3 5″ 55″, 55″
12′ 3 5″ 67″, 67″
14′ 4 5″ 45″, 68″, 45″

Precise deliveries to your location with minimal turf damageMule with Caption

Due to our specialized delivery equipment, the space required for delivery of your storage building is very minimal.  The width requirement is approximately 2′ wider than the building width.  The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage shed will require only 32′ of length, due to the maneuverability of our Mule.  The Mule and dollies will raise the building 18″, so that must be included when calculating clearances to branches and other buildings’ eaves.

Building Move Services

For details please click the link below:

buildingmovepolicies

"Rent-To-Own" as an alternative to mini-storage.

For those needing storage and on a tight budget.

With a storage building from Sturdi-Bilt Storage Barns, you can have your own storage facility placed conveniently in your back yard and own it after 12 or 24 or 36 monthly rental payments (not available for garages, cabins, or buildings built on site).  Why rent a storage unit miles away when you could have your storage right in your own yard?  In addition, the storage shed becomes entirely yours upon completing the payments.

The size of the rental payment varies according to the price and size of the shed you select.

A security deposit is required when the storage shed is ordered and the first month rental payment is due upon delivery.

Give us a call today to discuss your Rent-To-Own Storage Shed with our sales staff and we will customize a plan for you.

800-281-5998
Flexible terms & competitive rates.

FEATURES

Standard features of a Steel-Sided Gable shed:

  • Treated 4×4 foundation timbers
  • 2×4 joists, 16″ on center (treated perimeter joists)
  • 3/4″ tongue and groove AdvanTech® flooring, lifetime warranty
  • Screws in flooring to minimize squeaks
  • 2×4 wall studs, 24″ on center; 2×4 girts
  • 7′ sidewalls with 6’8″ inside; 8′ on 14′ wide
  • 29 gauge steel siding and roofing panels protect and secure your assets with low maintenance
  • choice of eighteen colors
  • 2×4 rafters, 24″ on center, 4/12 pitch; 2×6 rafters on 14′ width; 2×4 purlins
  • Optional 6″ overhangs on four sides with facia trims and enclosed soffits
  • Doors fitted with heavy 4″ tee hinges, loop-style barrel bolts, and diagonal steel braces
  • T-handled door latch; magnetic catches are optional
  • Zinc plating on door hardware (black option)
FAQ

What size sheds do you build?

Our portable buildings are 8’, 10’, 12’, and 14’ wide.  Lengths range from 6’ to 40’.

Common sizes include:  8’x10’, 8’x12’, 10’x12’, 10’x14’, 10’x16’, 12’x16’, 12’x20’, 12’x24’, 14’x20’, 14’x24’, 14’x28’

How is the shed delivered?

We deliver to your site using a tilt bed trailer and Mule.  The driver will unload the shed onto dolly wheels with flotation tires and the Mule will maneuver the building into your desired spot.

How much space is required for delivery?

The amount of space is minimal.  The width requirement is approximately 2’ wider than the building width. The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage shed will require 32′ of length.  The Mule and dollies will raise the building 18″, so that must be included when calculating clearances to branches, other buildings’ eaves, etc.  We can go over a regular curb, but not a retaining wall or other large obstacle.

Do I have to be present for the delivery of my storage shed?

Yes, we recommend that you or a designated contact person be present at the time of delivery.

Can my building be constructed in my yard?

Yes, for a modest fee, we can send a crew to build your building on your site.

What do I need to do to prepare my site?

The ground surface should be level, smooth, and firm.  We can deliver onto dirt if it is not too soft.  We can also deliver onto concrete, pavement, and packed rock or gravel.  At your request, our sales staff will provide quotes for concrete or rock pad preparation.  Optionally, your building can rest on a sloped yard (with the understanding that the walls will not be perfectly plumb).

How long does it take to get my storage shed?

In-stock buildings can usually be delivered within two weeks.  Custom built orders will be built and delivered by turn.

What are your payment terms?

At time of order, we ask for a down payment by cash, check, or credit card.  The balance is due at delivery.

What if I’d like to purchase but don’t have the cash on hand?

No problem, you can buy a storage shed on our rent-to-own plan.  There is no need to rent a storage unit blocks or miles away!  Put those monthly payments toward the ownership of your own storage facility.  A security deposit is due with the contract and the first monthly payment is due at delivery.

Colors

Standard Steel Colors

Steel Colors
Specifications

Dimensions of the Steel-Sided Gable Shed

8’ WIDE 10’ WIDE 12’ WIDE 14’ WIDE
Door Width: 45″ Door Width: 60″ Door Width: 60″ Door Width: 60″
Sidewall Height: 7′ Sidewall Height: 7′ Sidewall Height: 7′ Sidewall Height: 8′
Overall Height: 9’1″ Overall Height: 9’5″ Overall Height: 9’9″ Overall Height: 11’3″
Foundations

Location and Spacing of Steel-Sided Gable Foundation Timbers

A. WHEN ASSEMBLED AT STURDI-BILT, THEN DELIVERED
Building width Number of timbers Center of outside timber from edge of building Distance between timbers, O.C.
8′ 2 14″ 68″
10′ 4 5″ 21″, 68″, 21″
12′ 4 5″ 33″, 68″, 33″
14′ 4 5″ 45″, 68″, 45″
B. WHEN ASSEMBLED ON CUSTOMER’S SITE
8′ 2 14″ 68″
10′ 3 5″ 55″, 55″
12′ 3 5″ 67″, 67″
14′ 4 5″ 45″, 68″, 45″
RENT-TO-OWN

“Rent-To-Own” as an alternative to mini-storage.

For those needing storage and on a tight budget.



With a storage building from Sturdi-Bilt Storage Barns, you can have your own storage facility placed conveniently in your back yard and own it after 12 or 24 or 36 monthly rental payments (not available for garages, cabins, or buildings built on site.) Why rent a storage unit miles away when you could have your storage right in your own yard? In addition, the storage shed becomes entirely yours upon completing the payments.

You can customize your shed style, colors, and optional features and we will deliver it to your yard. The size of the rental payments vary according to the price and size of the shed you select.

A security deposit is required when the storage shed is ordered and the first month rental payment is due upon delivery.

Give us a call today to discuss your Rent-To-Own Storage Shed with our sales people and we will customize a plan for you.



800-281-5998
Flexible terms & competitive rates.
