Classic Barn

The Advantageous Storage Barn

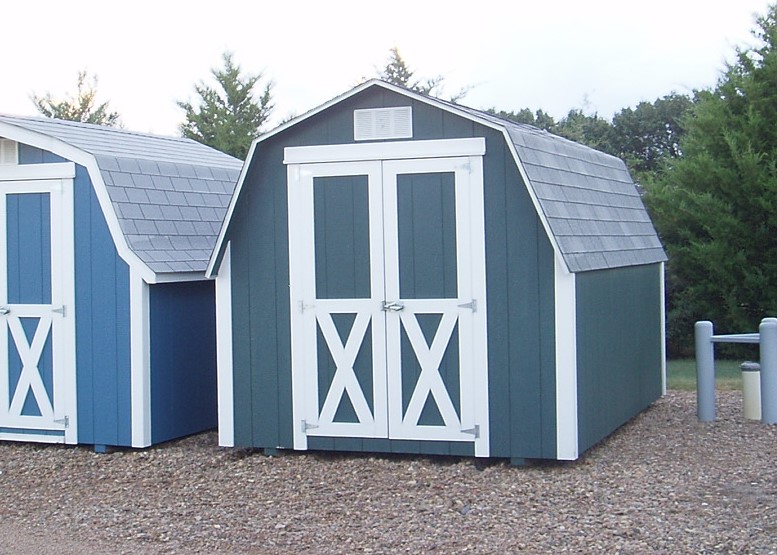

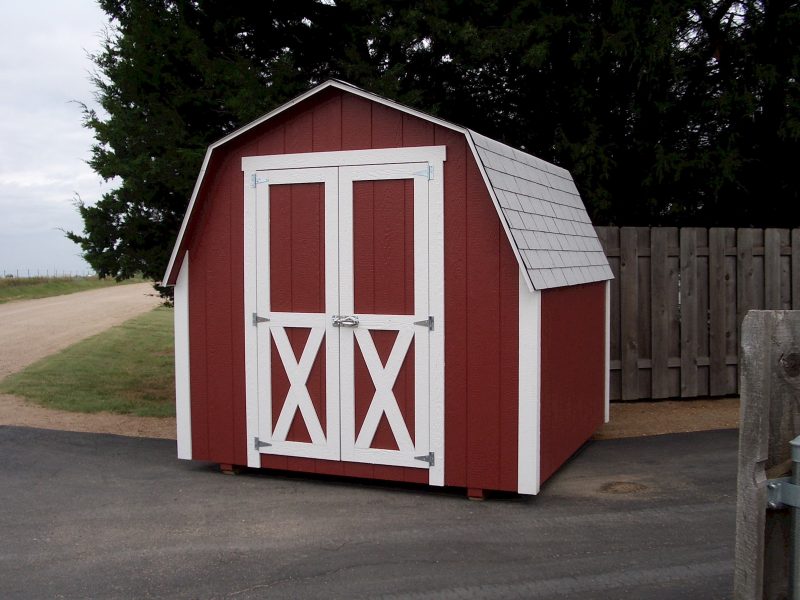

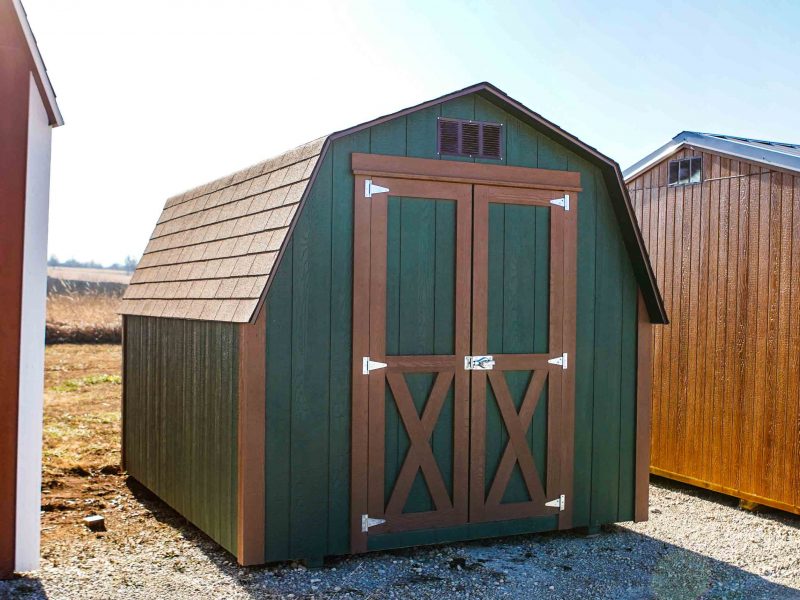

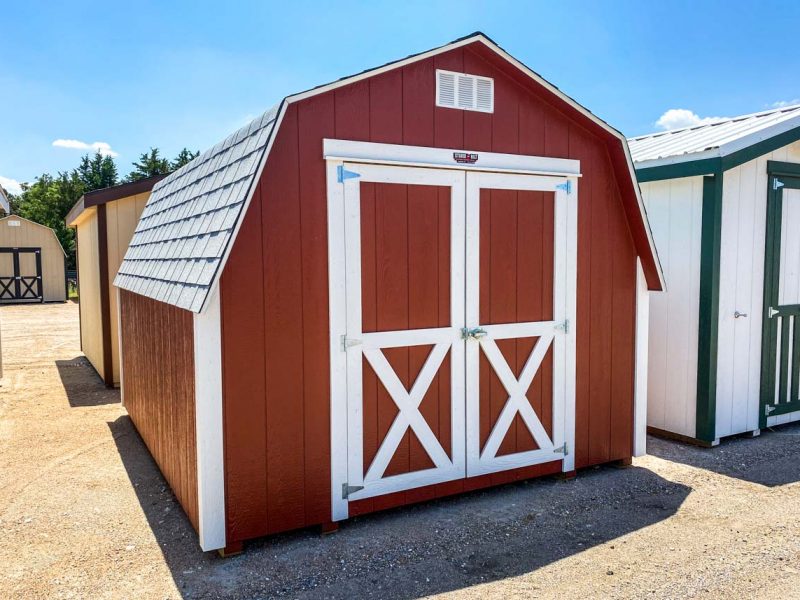

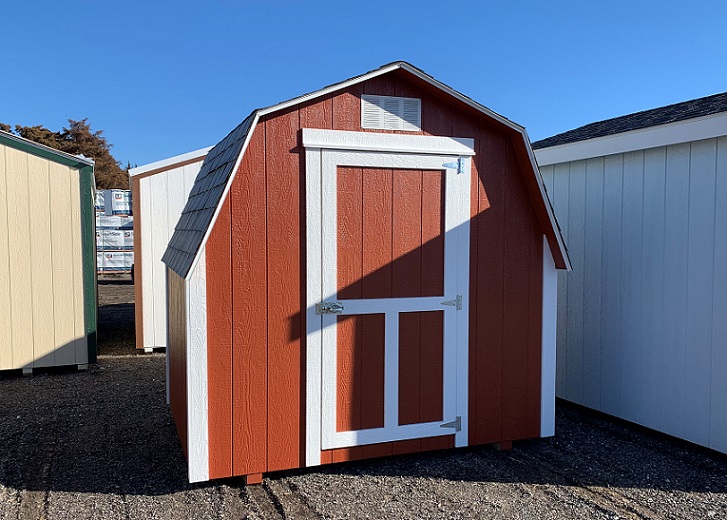

The Classic Barn:  Advantageous Choice in Backyard Storage Barns

The Classic Barn combines country decor with economy.  Designed with 6″ end overhangs, short sidewalls (4′ on 8′ and 10′ wide buildings, 4’6″ on 12′ and 14′ buildings), and gambrel rafters which provide maximum headroom.

Standard features of a Classic Barn:

  • Treated 4×4 foundation timbers
  • 2×4 joists, 16″ on center (treated perimeter joists)
  • 3/4″ tongue and groove AdvanTech® flooring, lifetime warranty
  • Screws in flooring to minimize squeaks
  • 2×4 endwall studs, 16″ on center
  • 4′ and 4’6″ sidewalls (2×4 sidewall studs, 24″ on center)
  • LP SmartSide® panel siding, 50 year warranty, (SmartGuard® treatment resists termites and fungal decay)
  • 2×4 rafters, 24″ on center
  • 7/16″ OSB roof sheathing
  • #1 FG three-tab shingles, choice of nine colors, 240#, 25 year warranty, (upgradable to lifetime FG laminates or steel roof)
  • 4″ overhangs on sides with facia trims and enclosed soffits, optional 6″ ends overhangs
  • Doors fitted with heavy 4″ tee hinges, loop-style barrel bolts, and diagonal steel braces
  • Doors and corners trimmed with treated LP SmartTrim®, 50 year warranty
  • Whitcomb door latch (T-handled latch and magnetic catches are optional)
  • Zinc plating on door hardware (black option)
  • Top trim for doors designed with built-in drip-cap protection
  • Sherwin Williams, A-100® satin exterior acrylic latex siding and trim paint, 14 standard colors, 15 year warranty

What size sheds do you build?

Our portable buildings are 8’, 10’, 12’, and 14’ wide.  Lengths range from 6’ to 40’.

Common sizes include:  8’x10’, 8’x12’, 10’x12’, 10’x14’, 10’x16’, 12’x16’, 12’x20’, 12’x24’, 14’x20’, 14’x24’, 14’x28’

How is the shed delivered?

We deliver to your site using a tilt bed trailer and Mule.  The driver will unload the shed onto dolly wheels with flotation tires and the Mule will maneuver the building into your desired spot.

How much space is required for delivery?

The amount of space is minimal.  The width requirement is approximately 2’ wider than the building width. The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage shed will require 32′ of length.  The Mule and dollies will raise the building 18″, so that must be included when calculating clearances to branches, other buildings’ eaves, etc.  We can go over a regular curb, but not a retaining wall or other large obstacle.

Do I have to be present for the delivery of my storage shed?

Yes, we recommend that you or a designated contact person be present at the time of delivery.

Can my building be constructed in my yard?

Yes, for a modest fee, we can send a crew to build your building on your site.

What do I need to do to prepare my site?

The ground surface should be level, smooth, and firm.  We can deliver onto dirt if it is not too soft.  We can also deliver onto concrete, pavement, and packed rock or gravel.  At your request, our sales staff will provide quotes for concrete or rock pad preparation.  Optionally, your building can rest on a sloped yard (with the understanding that the walls will not be perfectly plumb).

How long does it take to get my storage shed?

In-stock buildings can usually be delivered within two weeks.  Custom built orders will be built and delivered by turn.

What are your payment terms?

At time of order, we ask for a down payment by cash, check, or credit card.  The balance is due at delivery.

What if I’d like to purchase but don’t have the cash on hand?

No problem, you can buy a storage shed on our rent-to-own plan.  There is no need to rent a storage unit blocks or miles away!  Put those monthly payments toward the ownership of your own storage facility.  A security deposit is due with the contract and the first monthly payment is due at delivery.

Customize Your Building with Your Choice of Door Trims

CHOOSE ONE OF THE FOLLOWING 4 STYLES AT NO EXTRA COST.

Arches
Mission
Crossbuck
Panel

The Arched Mission and Arched Crossbuck designs below are available for $25 and the Madison and Stockton Windows are $150 upgrades.

Arched Mission
Arched Crossbuck
Madison Test Alt
Madison
Stockton

Add Windows for Light and Ventilation

3 Pane Awning
24x28 Vertical Slider
24x36 Vertical Slider
28x36 Vertical SLider
36x48 Vertical Slider
30x24 Horizontal Slider
48x24 Horizontal Slider
48x36 Horizontal Slider

A Clear Choice

Sturdi-Bilt offers choice of the eight American made windows pictured above:  a jalousie type (3 pane awning window with aluminum frame), four vertical sliders, and three horizontal sliders.  All seven sliders are vinyl framed and designed for years of low-maintenance use.  Divider grilles are optional on the vertical and horizontal sliders for an additional $15.

Standard Paint and Shingle Colors

Untitled-1



Trim














Siding














Although we have tried to make our colors as close to the paint colors as possible, due to variations between paint and digital color and variations between monitors, actual colors may vary.

Dimensions of the Classic Storage Barn

8’ WIDE 10’ WIDE 12’ WIDE* 14’ WIDE*
Door Width: 45″ Door Width: 60″ Door Width: 60″ Door Width: 60″
Sidewall Height: 4′ Sidewall Height: 4′ Sidewall Height: 4’6″ Sidewall Height: 4’6″
Overall Height: 8’5″ Overall Height: 9’1″ Overall Height: 10’6″ Overall Height: 10’6″

*Due to DOT regulations, 12′ and 14′ Classic Barns are 4″ narrower.

Location and Spacing of Classic Barn Foundation Timbers

A. WHEN ASSEMBLED AT STURDI-BILT, THEN DELIVERED
Building width Number of timbers Center of outside timber from edge of building Distance between timbers, O.C.
8′ 2 14″ 68″
10′ 4 5″ 21″, 68″, 21″
12′ * 4 5″ 31″, 68″, 31″
14′ * 4 5″ 43″, 68″, 43″
B. WHEN ASSEMBLED ON CUSTOMER’S SITE
8′ 2 14″ 68″
10′ 3 5″ 55″, 55″
12′ * 3 5″ 65″, 65″
14′ * 4 5″ 43″, 68″, 43″

*Due to DOT regulations, 12′ and 14′ wide Classic Barns are 4″ narrower.

Precise deliveries to your location with minimal turf damageMule with Caption

Due to our specialized delivery equipment, the space required for delivery of your storage building is very minimal.  The width requirement is approximately 2′ wider than the building width.  The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage shed will require only 32′ of length, due to the maneuverability of our Mule.  The Mule and dollies will raise the building 18″, so that must be included when calculating clearances to branches and other buildings’ eaves.

Building Move Services

For details please click the link below:

buildingmovepolicies

"Rent-To-Own" as an alternative to mini-storage.

For those needing storage and on a tight budget.

With a storage building from Sturdi-Bilt Storage Barns, you can have your own storage facility placed conveniently in your back yard and own it after 12 or 24 or 36 monthly rental payments (not available for garages, cabins, or buildings built on site).  Why rent a storage unit miles away when you could have your storage right in your own yard?  In addition, the storage shed becomes entirely yours upon completing the payments.

The size of the rental payment varies according to the price and size of the shed you select.

A security deposit is required when the storage shed is ordered and the first month rental payment is due upon delivery.

Give us a call today to discuss your Rent-To-Own Storage Shed with our sales staff and we will customize a plan for you.

800-281-5998
Flexible terms & competitive rates.
